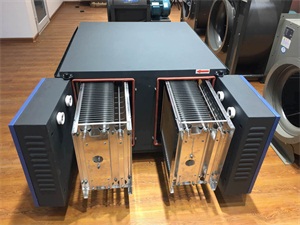

廚房內油煙凈化器的安裝注意事項
    1、每個爐灶對應的處理風量約為2000~2500m3/h，根據爐灶數量及安裝位置確定總的處理風量并選定相應的凈化器的規格型號。
    The handling air volume corresponding to each stove is about 2000~2500m3/h. According to the number and location of the stove, the total amount of air is determined and the corresponding specification of the purifier is selected.
    2、凈化器可室內、外安裝，凈化器室外安裝請在機器上方安裝防雨裝置以增加機器的使用壽命，凈化器周圍需要預留維修空間、機箱門應有90度以上直角自由開啟空間以便于日后保養、清洗、維修。
    the purifier can be installed indoors and outside, and the cleaner is installed outside the machine to increase the service life of the machine. The maintenance space should be reserved around the purifier, and the box door should be free to open space above 90 degrees to facilitate the maintenance, cleaning and maintenance.
    3、機器在安裝前好先通電試行一段時間，檢驗機器的電極是否會在運輸或搬運中產生偏移。
    before the installation of the machine, it is better to test the machine for a period of time and check whether the electrode of the machine will be offset in transportation or transportation.

    4、機器的進出風口可以隨意互換，進風口方向必須要有過濾網。
    the inlet and outlet of the machine can be exchanged at will, and the inlet must have a filter screen.
    5、安裝油煙凈化器與煙罩出口位置的距離少在4米以上，以確保消防和凈化效果；凈化器與風機的距離在2米以上比較合適，凈化器好安裝在風機的前面，如果風機需要安裝在凈化器的前面，風機的出風口不能對著凈化器直吹，否則會影響凈化器凈化效果；凈化器的進風口好不能有彎頭。
    The distance between the oil fume purifier and the exit position of the hood is at least 4 meters above, to ensure the safety and purification effect. The distance between the purifier and the fan is more suitable than 2 meters. The purifier is best installed in front of the fan. If the fan needs to be installed in the front of the purifier, the outlet of the fan can not be treated with the purifier. The blows are directly blown, otherwise the purifier's purge effect will be affected; the inlet of the purifier should not have elbow.
    6、設備箱體必須接地。
    the equipment box must be safely grounded.
    7、接好排油管。Connect the oil exhaust pipe well.
    8、選擇相匹配的風機風量，風機的風量選擇一般與凈化器的處理風量相當。風機的風量在滿足廚房抽風要求的情況下，風機的風量越小對凈化器的效果就越好。
    choose matching fan air volume, and the air volume of fan is generally equal to that of purifier. When the air volume of the fan satisfies the requirements of the kitchen exhaust, the smaller the air volume of the fan is, the better the purifier will be.
    9、凈化器通過發蘭與排風風管連接，所有連接應密封、防止漏油。
    The purifier is connected by FA LAN and exhaust air duct. All connections should be sealed to prevent oil leakage.
    10、確保，凈化器要求能與風機聯動，即凈化器跟風機同時開同時關；如不能聯動的，應做到在啟動凈化器之前必須先啟動風機運作10余分鐘，關機時應先關掉凈化器后再停風機。
    to ensure safety, the purifier requires a linkage with the fan, that is, the purifier and the fan at the same time; if not linked, should start before starting the purifier to start the fan operation for more than 10 minutes, when the machine is shut down, the purifier should be turned off and then the fan.
    本文由濟南排煙罩提供分析，更多的詳細精彩內容請點擊我們的網站http://m.pvcbox.cn/。
